What is Abstract Factory Design Pattern? (Easy)

Abstract Factory Design Pattern is one of the creational design patterns that make families of the dependent objects. This is also called the factory in factories and each factory connects with interfaces. Those interfaces are returning concrete class-type objects when clients request objects through the factory.

Abstract Factory Design Pattern built on top of the factory method pattern ( factory pattern ). Therefore Abstract Factory Design Pattern intention is similar to the factory method pattern and hides the logic from the client.

Its hides the mechanism of creating objects by giving a common interface to create or request objects. Users do not consider how factories produce objects, but just request what they need.

Abstract Factory Design Pattern Real World Example

Let’s take the vehicle building factory as an example. Consider Heavy vehicles develop in one factory and lightweight vehicles developed by another factory. Factory Provider is the front layer that creates contact with clients and provides services for them. But clients are not engaged directly with factories. Vehicle manufacturing inside the factories hides from clients.

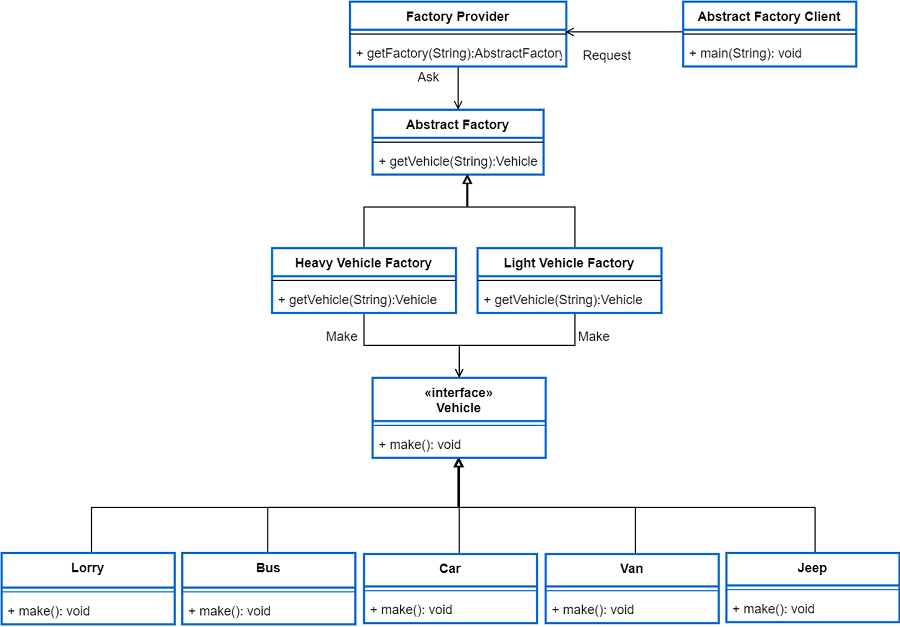

Let’s go with a class diagram and try to understand how objects connect with factories.

According to the diagram heavy vehicles build by a heavy vehicle factory and light vehicles build by another factory.  But the client doing the deals with the Factory Provider. The factory provider is responsible for finding the correct factory and taking necessary actions for the client’s requests.

Then According to the diagram Client’s vehicle provide to the client through a factory. Keep in mind when going through the code and diagram all the concrete classes depend on interfaces or abstraction. That’s one of the good use of Design Principles.

Then move into to Java code implementation of the Abstract Factory Design Pattern.

Abstract Factory Design Pattern in Java

// Vehicles are independent.
// New Vehicle start manufacturing in the system not break existing
interface Vehicle{
   void make();
}

class Bus implements Vehicle{
   @Override
   public void make() {
      System.out.println("Bus made");
   }
}

class Lorry implements Vehicle{
   @Override
   public void make() {
      System.out.println("Lorry made");
   }
}

class Car implements Vehicle{
   @Override
   public void make() {
      System.out.println("car made");
   }
}

class Van implements Vehicle{
   @Override
   public void make() {
      System.out.println("Van made");
   }
}

class Jeep implements Vehicle{
   @Override
   public void make() {
      System.out.println(" Jeep made");
   }
}

abstract class AbstractFactory {
   abstract Vehicle getVehicle(String vehicleType) ;
}

// Factries are independent. New factory open to the system not break existing
class HeavyVehicleFactory extends AbstractFactory{
   public Vehicle getVehicle(String vehicleType){
      if (vehicleType.equals("BUS")) {
         return new Bus();
      }
      if (vehicleType.equals("LORRY")) {
         return new Lorry();
      }
      return null;
   }
}

class LightVehicleFactory extends AbstractFactory{
   public Vehicle getVehicle(String vehicleType){
      if (vehicleType.equals("CAR")) {
         return new Car();
      }
      if (vehicleType.equals("VAN")) {
         return new Van();
      }
      if (vehicleType.equals("JEEP")) {
         return new Jeep();
      }
      return null;
   }
}

// FactoryProvider looking for correct factory according to the clients requests
class FactoryProvider {
    public AbstractFactory getFactory(String factory){
        if(factory.equals("LIGHTVEHICLE")){
            return new LightVehicleFactory();
        }
        else if(factory.equals("HEAVYVEHICLE")){
            return new HeavyVehicleFactory();
        }
        return null;
    }
}

//Clients looking for vehicle but it calling throught the Provider.
// Not direct contact with Factries..
public class AbstractFactoryClient {
   public static void main(String[] args) {
      FactoryProvider provider=new FactoryProvider();
      AbstractFactory abstractFactory=provider.getFactory("LIGHTVEHICLE");
      Vehicle vehicle=abstractFactory.getVehicle("VAN");
      vehicle.make();

      abstractFactory=provider.getFactory("HEAVYVEHICLE");
      vehicle=abstractFactory.getVehicle("BUS");
      vehicle.make();
   }
}

Output

Van made
Bus made

Let’s consider if the company wants a new vehicle type to start production. Now all the existing vehicles depend on vehicle interface. If then-new production receives its easy to plug into the existing system without making any changes in existing code. Extending is very easy when depending on abstraction.

This extending concept applies not only to vehicles but also apply with factories. Opening a new factory is just extending an abstract factory.

Advantages of Abstract Factory Design Pattern

• Hide internal implementation of a factory and return client required through the interface.
• Loosely couple enables to extend the application without affecting other parties.
• Improve the security by loosely coupling.
